Mechanical Valves/Transmitters
2/3-Port Mechanical Valve with One-touch Fitting VM100F
 | ・Built-in One-touch fitting reduced installation space and less piping work ・Space saving Built-in One-touch fitting Approx. 35% reduction (25.8 mm shorter) ・Lightweight With resin body material 80% reduction (48 g lighter) ・Less man-hours replacing the actuator Mounting using a clip makes replacement easier. |
| Description | Series | Number of ports |
|---|---|---|
| Mechanical valve | VM100F | 2/3 ports |
■Built-in One-touch fitting reduced installation space and less piping work

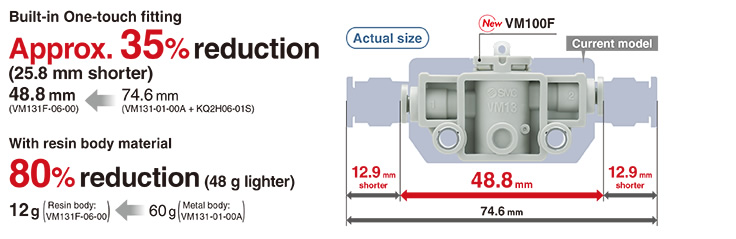

Space saving･Lightweight
Built-in One-touch fitting Approx. 35% reduction (25.8 mm shorter)

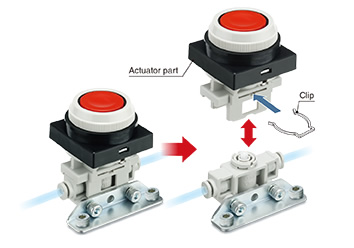

Less man-hours replacing the actuator
Mounting using a clip makes replacement easier.

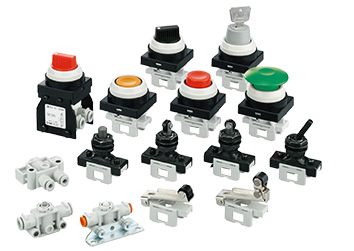

Variations
Actuator type
Mechanical operation: 5 types
Manual operation: 7 types

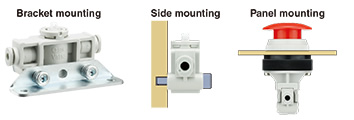

Mounting

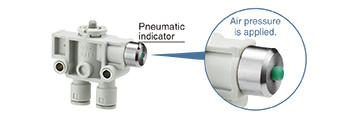

With miniature indicator (Bottom ported only)
Possible to check if air pressure is applied

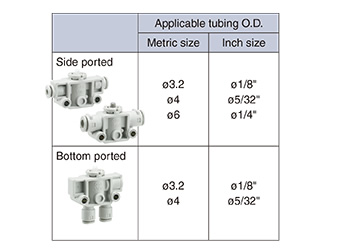

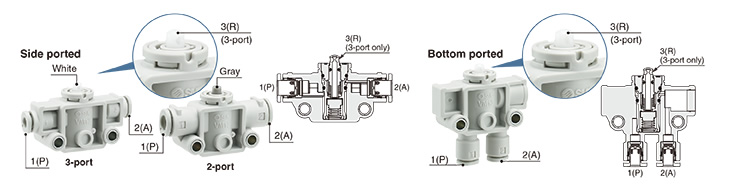

Piping direction
Mounting interchangeable with the conventional model
Mounting pitch and height are the same as the current model
Available in vacuum applications
−100 kPa to 0.7 Mpa

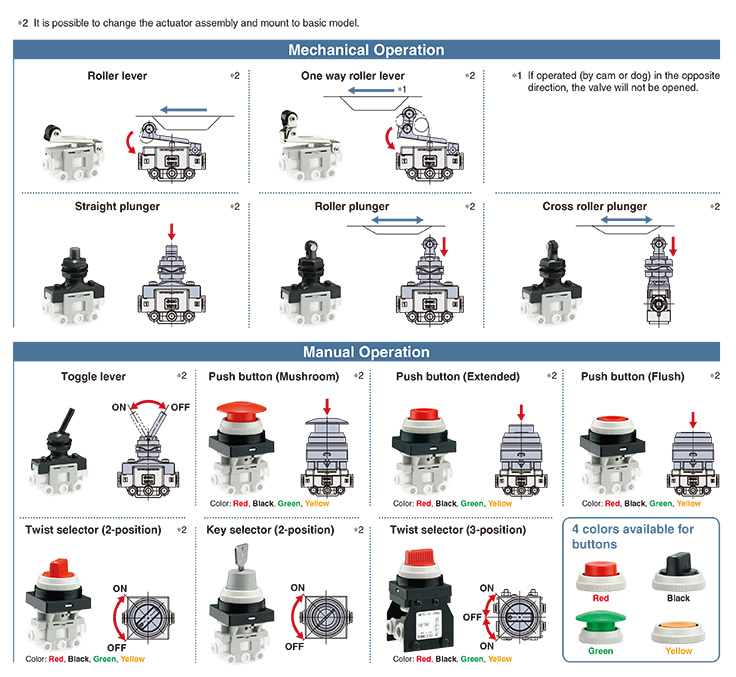

Actuator Variations
